Monday, September 30, 2013

The sub-2 hour marathon? Don't hold your breath, just yet

Is the sub-2 hour marathon imminent?  Don't hold your breath

Yesterday Wilson Kipsang took 15 seconds off the marathon world record, running 2:03:23.  It triggered, as it always does, talk of how close they are to breaking the two-hour barrier.  But that's very, very premature.  For reasons of physiology, performance evolution, and the inter-connectedness of performances from 10km to the marathon, we are a long, long way from going under two hours.

It's not the same as for you or I, who find ourselves a few minutes outside a barrier, and know that six months of hard training and a good day will break it.  This is a world where the margins are tiny - that's why we can look at the pacing strategy and the splits and comment that perhaps it was a little too fast in sections, when in reality, "too fast" means 1 second per kilometer, accumulated over 20 minutes!  The precision of the physiology to run a 2:03 is extra-ordinary.

So consider for instance the progression.  In the modern era, catalyzed by da Costa's breaking of Dinsamo's 1988 record, the improvements in the record are as follows:
23 seconds, 4 seconds, 43 seconds, 29 seconds, 27 seconds, 21 seconds, 15 seconds.

This record is not going to be "smashed" by anyone.  Anything greater than 20 seconds is a big improvement.

The real story is not how often the record is broken, it's how often it isn't

What the sequence above doesn't say, which is more important, is that for every successful attempt, there are probably fifty (a hundred?) unsuccessful ones, where the best runners in the world are on course for the time, for some of the race, then fall away.  Every year, five or six big city marathons start with high hopes - London, Dubai, Chicago, Rotterdam, Frankfurt, Berlin and perhaps two or three others.  Across these races, there are likely twenty "viable candidates", and yet perhaps one in a hundred will come off, despite intent and incentive.

That's why when you look at the record books, you'll see that there are now about 50 performances under 2:06.  Most of those started out as record attempts, and many will have had high hopes up to halfway, or even 30km.  In London earlier this year, about six of the best marathon runners in history went to 25km on course for the world record.  The explosion was huge, and some ended up finishing outside 2:09, or not at all.  I recall Emmanuel Mutai closing at 5:00/km.  The same happens every year in many races.  Even in Berlin yesterday, only one man of a group of three sub-2:06 guys held on to run a 61:51 second half.  Incredible running, but it should highlight just how rare successful attempts are.

The implications - many factors have to align

In the future, that will become more the case.  As this record drops, it will become more difficult to break, and that has some implications.

First, it requires an absolutely perfect day.  London, where the final 8km are run along the embankment, often finds a headwind that could easily cost 2 sec/km and that would be enough to eliminate record possibilities.  Chicago has found itself too hot or too cold.  Berlin was too wet recently.  Dubai hot or windy.  Unless the weather is close to perfect, the record is becoming too strong to break.

Second, the marathon course must be perfect.  I think there are probably only four or five courses in the world that are viable for a world record.  Dubai, Berlin (obviously), London (though the wind, and the number of turns, makes me wonder whether this is still the case, actually), Chicago, and then one or two of the second tier races like Frankfurt where Kipsang ran 2:03:42 a few years ago.

The marathon course is nothing without the best athletes, and so now you also need huge money to attract the best men, in the right numbers, for a record.  London has in the past been so strong that the athletes watch one another rather than risk losing to chase times.  New York gets amazing fields, but the course compromises the final time.  Second-tier marathons with perfect profiles can't get the depth of quality to deliver the record.

The problem then is that there are only a few opportunities a year for the top guys to have a realistic shot.  Now the above three factors need to come together - you need perfect weather on the perfect course, with the best athlete in close to perfect condition, and suddenly you can see why unsuccessful attempts outnumber successful ones so convincingly.

So, what does this mean?  It means that if the record is broken by 15 seconds each time (I think this is a realistic expectation, particularly as it gets stronger), then one can expect it to happen perhaps once every three years.  More likely four or five in the future, but if it were three, then in order to cut another 3:23 off in 15 second intervals, you're looking at around 40 years.

The physiology and performance links behind the 2-hour marathon

So this talk of a sub-2 hour marathon is so premature.  There are a few physiological reasons why it is also not feasible at this stage.  I have written on this extensively before:
But to sum it up as briefly as possible, the point is this.  If you want a guy to run sub-2 for a marathon, then you're asking for a capability of back-to-back half marathons in under 60 min.  The current WR for the half is 58:23, by Tadese (who hasn't turned that into a decent marathon yet), but for the most part, the top men are running in the low-59s.  The very best break the 59-min barrier.

In other words, the currently best runners on the planet are hovering around 59-minutes for half the distance that people expect them to run in a marathon, at the same pace.  It's a little like expecting Usain Bolt, with his 19.19s 200m best, to go out and run a 400m, slow down just a little, and run a 41s World Record.

Or it's expecting David Rudisha, who can run a 400m in 45s, to hold a pace of 46s for two laps and run 1:32, rather than his 1:41 for 800m.  It just isn't going to happen, and the reason is that the pace we can run for a given distance decreases in a predictable, physiologically 'constrained' manner as the distance increases.

So a man who runs a 59-min half marathon will not be able to sustain two back-to-back 60 min half marathons.  It's just not possible.  And so therefore, before we can even consider the sub-2 hour marathon, we need to look at the ability over the half marathon.  Until humans can run a half-marathon in under 58-minutes (and here, I'm talking low-57), it will not be possible to produce 59:59 twice in a marathon.

And that can be taken one step further, to 10km.  If you are going to see a 57:x half marathon, then you should also be seeing a 10km that is substantially faster than the current 26:x.  The 10km performance required to run a 57 is probably in the high 25s.

It's possible, of course, that the change could come from the ability to sustain high speeds, rather than to nudge the entire system faster.  In other words, the runners of the future could well run at current 21km paces for twice the distance without the paces for shorter distances changing.  That would change the relationship between intensity and duration as we know it, but it is possible if the threshold capacity of runners changes (substantially) in the future.  But that's not going to come instantly - there are physiological barriers that must be inched out of the way, not leapt right over.

Those relate to the physiological implications, which I have written on before, so I won't go into here.

Bottom line is that talking about a sub-2 hour performance after seeing a 2:03:38 improve to a 2:03:23 is just not feasible.  The next barrier is 2:03, and I'm sure will go within five years.  Then we can begin to work towards 2:02, which will take another ten years, perhaps.

It's a great period for marathon running - every season, fall and spring, we get to anticipate a record at least twice.  2013 has delivered a successful attempt, but it shouldn't lull us into expectation that more of the same is just around the corner.

Ross


A 2:03:23 marathon world record: Analysis and pacing

Wilson Kipsang's 2:03:23 WR: Thoughts and analysis

Wilson Kipsang yesterday became the 32nd man since WWII to hold the marathon world record.  He broke countryman Patrick Makau's World Record by 15 seconds, setting a new mark of 2:03:23.  A spectacular performance, in which he managed his effort perfectly, showing patience and the right level of aggression at the right time to finish superbly.

Today I share some thoughts, based on the chat on Twitter yesterday, concerning the race, the pacing, and the prospects for that sub-2 hour marathon that people seem very eager to talk about.

I'll tackle the analysis in two parts, one analyzing the race, and later, something on the 2-hour barrier.

The race was managed very well by Kipsang

Below is a graph showing the 5km split times and paces for the race, and includes a projection for 5km based on the final 2.2km, where Kipsang really picked it up.


So, they start fast - the projected time all the way through the first 20km was under the WR.  They reached halfway in 61:32, projecting a 2:03:04, and that was, if anything, perhaps a little too fast.  It set the second half up as a really attritional race - nobody was going to run even or negative splits, and the question was whether any of the big three - Kipchoge, Geoffrey Kipsang or Wilson Kipsang - would hang on well enough to break 62 and the World record.

The pace got slower after halfway.  The section from 20km to 25km was the slowest of the race, which you can see as the peak in the graph above.  Note however that the pace never once dipped below 3:00/km, and that the range was between 2:54 and 2:59.  That's remarkably precision.

That slow 5km interval, and the one immediately after it (25km to 30km) were probably critical to the record because they set the final 10km up.  I have my doubts around how the result would have looked had they continued to push at the 2:03 pace.  It was important to regather, even though it meant slowing down to around 2:06 pace for a short while.

Once regathered, Kipsang was mighty impressive in the final 10km.  He took the initiative, as the "senior" man in the race, and drove the pace even faster.  Only Kipchoge was able to respond and that was fleeting too.  Kipsang ran a few kilometers in 2:49 in that second 30km to 40km, which means there was some in the range of 3:00 too.

So it was a little more varied there, indicating either a change in wind direction (the weather was almost perfect, but not quite), or that Kipsang was digging deep, then finding he needed some active recovery, then digging deep, and recovering, and so on.

Eventually, with 2km to go, he found the big final effort and finished incredibly fast - 2:49/km for the final two, and that was ultimately the difference.  15 seconds, and it came, largely in those final kilometers.  Of course, that's only part of it - the work had been done to get there.

Overall, it was a very well controlled race. Mature, patient, but also aggressive.  His pace-makers did an amazing job up to 30km, and while they may have been just a touch fast from 10km to 20km, it never got out of control.

Taking a broader view, Kipsang paced the marathon almost like a mile race.  If you break the race into quarters, you get the following for his 10km splits:  29:16 - 29:03 - 29:42 - 29:11 (plus that final surge).  The "shape" of that race looks like a typical mile WR - Fast start, slowest in the third quarter, and then the surge.  It was an excellent management of his physiological resources.

In terms of where improvement can come, Kipsang finished very fast, suggesting a reserve, and the ability to go slightly faster.  But it's not huge.  It's not like when you or I finish a 10km and find a surge in the final kilometer that sees us run 20s/km faster than our race average.  In this world, a reserve is being able to go 4-5 seconds per kilometer faster, and so it really is on the limit.

Kipsang is also 31, in his fourth year of marathon running, and set this WR in his 7th race, which is a long time to reach a peak.  Typically, the fastest marathon of an athlete's career happens between 2 and 4, though there are exceptions (Gebrselassie took a while to perfect the race, and then improved steadily quite late).  Kipsang then, may follow a similar approach, and improve again, but the 'safer bet', as it always is, is that he won't.

Behind him, Kipchoge made a big improvement on his debut, which was already impressive at 2:05 from earlier this year.  He's now a 2:04 man, and on the path towards 2:03, so it will be very interesting to follow whether he can continue that, or whether there's a 'glass ceiling'.  The same goes for Geoffrey Kipsang, who "only" ran 2:06:26, but was there for three quarters of the race, and who may yet be able to turn that into an entire race one day.

Then of course there are the Ethiopians, a group of young runners in the 2:04 category, and who may challenge, and there are other Kenyans who've been hovering in the same region.  Marathon running is incredibly deep and strong at the moment, which means we'll get to enjoy similar races and record attempts at least three or four times a year for the foreseeable future.

But for now, it's Wilson Kipsang, with a spectacular performance, who holds the distinction of being the fastest ever.

More later on the 2- hour marathon.

Final thought - the guy who ambushed the breaking of the tape to promote prostitution has been charged with trespassing.  What should happen to him is that he should be sent to Kenya, preferably Eldoret or Iten where all the elite runners train, for three months of community service work.  Let him serve in any was possible (he can carry water and drive behind the runners on long training runs), and learn some respect for the runners of Kenya in the process.  Idiot.

Ross

Sunday, September 29, 2013

Berlin Marathon 2013: Live splits and analysis

World Record! 2:03:23 Wilson Kipsang
Live Splits and Analysis

Wilson Kipsang has broken the Marathon World Record!  2:03:23 in Berlin.

Here is how he did it, splits and analysis from the race!  I'll post more later!

Overall splits Men

5km:  14:34.  2:55 per km, projecting 2:02:56
10km:  29:16.  14:42 for the last 5km, pace of 2:56/km. Projected time now 2:03:29
15km:  43:45.  14:29 for the last 5km, pace of 2:54/km, the fastest so far. Projecting 2:03:04.
20km:  58:19.  14:34 for the last 5km, pace of 2:55/km.  Projecting 2:03:02
Halfway:  61:32. Easy calculation, it projects 2:03:04, a WR by 34 seconds
25km:  1:13:13. 14:54 for last 5km, pace of 2:59/km, so slowest segment. Projecting 2:03:35
30km:  1:28:01.  14:48 for the last 5km, pace of 2:58/km.  Projection of 2:03:48
35km:  1:42:36.  14:35 for the last 5km, pace of 2:55/km. Projecting 2:03:41
40km:  1:57:12.  14:36 last 5km, projecting 2:03:38. Epic finish coming up!
Finish: 2:03:21.  The World Record is gone!

40km

It's on. Final 2.195km at 2:54/km will get the WR.  By 1 second!  As you can see above, that's what they've done since 30km, and so the record is a real possibility.  Kipsang leads Kipchoge by about 10 seconds, so it is a one-man race for the WR.  Silence now until the end, I'll fill in the blanks later.  This will be a "sprint" through the Brandenburg Gates for the World Record.

Kipsang has slowed slightly in the last 2km, so he needs a pick up.  But it's so close now, if he can just dig in and find 5 minutes of effort, he'll get this.

35km

The pace has now picked up, with the pacemaker having dropped off.  Wilson Kipsang has led the upturn in pace, which has seen the last 5km covered in 14:35 .  That included a 2:52 34th kilometer, very fast.

Wilson Kipsang is the aggressor, leading the race, but with company from Geoffrey Kipsang and Eliud Kipchoge.  Kipsang, as the senior, pedigreed man, obviously has the pressure and obligation to keep the record viable.

With 10km to go, the TV graphic suggests that a 29:30 10km will be needed.  That is definitely feasible.

The pacmaker fought to about 31 km then dropped off, leaving the big three.  It's the Kipsangs, Wilson and Geoffrey, along with Kipchoge.  So as expected, those three fight for the win.  Whether their fight produces a record, that's the intrigue.

30km

They've remained slightly slower than WR pace.  2:58/km gives 14:48 for the last 5km, and a projection of 2:03:48.

So, having been well under WR pace at halfway, it's now going to take a real aggressive final 10km to get the WR.  Whether anyone will take the 'risk' in the company of other men is going to determine how close they get.  That will depend on how they each feel, of course.

At this stage, it's a good time to consider who the viable candidates are.  Wilson Kipsang, Geoffrey Kipsang and Eliud Kipchoge are all there, as is one pacemaker, and Kirwa and Kipchirchir.  An all Kenyan front five, plus the pacemaker Rono.  Five men is good in the sense that 'company' helps in the latter part of the race, but it will be interesting to see how the racing affects the pacing, as it were.

It was this segment where Patrick Makau made the surge that would drop Gebrselassie on route to the current WR in Berlin.  He ran a 5:30 2km segment then, which certainly helped his race, but probably cost him some time.  So the comparison with Makau, which up to now has seen 2013 ahead, will probably look different at 30km, but that's still OK - there are 12km to go from that point, much can happen.

25km

The last 5km were run in 14:54, which is 2:59/km, the slowest segment of the race.  You can tell the pace had slowed because the front group at halfway was thinning out, and it has now expanded again, as runners who had dropped off have come back on.  That's always a sign.  The projection now is 2:03:35, and so it has suddenly come back from being a big WR projection, to a touch and go race.

There is some talk that the runners were benefiting from a tailwind between 10 and 20km, which is now gone.  These are the subtleties that affect WR potential...

At this stage of the race, patience really counts for a lot, so the slowing is not necessarily a bad thing.  The temptation, as the field thins out, is to get aggressive, because you're on the way "home", as it were.  We've seen in London and other big city races how aggression at 25km often blows the race open, but it comes at the cost of the fast time.  So it's important here to be patient, and avoid a 5:35 surge for 2km that can easily derail the WR.  Kipsang of course did that in the Olympics, not off a WR pace, but may have learned from that.  They do have a buffer of around 30 seconds for this second half - a 62:00 still gives a WR.

Halfway

61:32, so a WR projection by 34 seconds.  It promises to be an intriguing second half.  For one thing, the pacemakers will drop at around 30km, and then it will be up to the big three, assuming they're all there, to decide how best to push the pace to keep the WR in view, while still racing and not pulling a colleague to the WR.  That will be perhaps the race's decisive moment.

20km

58:19 at 20km, the projection is for a 2:03:02.  The last 5km was 14:34, so 2:55/km, but there were reports that the 18th kilometer was 2:52, which is very fast and suggests a little bit of oscillation.  Again, the athletes can see their pace and the projected time continuously in Berlin, so when the pace is faster, it's not an accident caused by lack of information, it's a conscious decision to ramp the pace.  They are being incredibly aggressive, and that makes for an interesting second half.  They should hit halfway in about 61:30, and so the second half is guaranteed to be attritional.  The question now is whether it is attritional enough to cost them the WR, or whether they hang on?

15km

The pace has actually increased - 14:29 for the last 5km, and the projected time is now down again, to 2:03:04.  This is quick, and maybe cause for concern.  If you're 15 to 20 seconds up on WR pace through halfway, then that's bordering on reckless.  So it will be interesting to see how the section 25 to 35 km goes.  That's often where the "interest" payments are made.

A TV graphic is showing that they're currently 36 seconds faster than Makau was at the same stage - the coverage is good so far.  Remember that Makau had a race with Gebrselassie that really jacked the pace up after halfway, so that gap may come down later.  The optimal way to run is even pace, so the Makau comparison is less informative, but interesting.  Also, in Berlin, runners have access to the car in front of them, which gives all the information required to manage the pace.  It even gives a projected time, so if they're running under 2:03-pace, then it's because they have chosen to, not because they're making a mistake in the absence of information, which is important to consider.

Florence Kiplagat has gone through 15km in 49:27, which projects a 2:19:06, so she has slowed very slightly, but still on course for a big PB and significant performance under 2:20.

10km

The pace has been maintained, 14:42 for the last 5km.  That's very steady.  The biggest challenge is consistency, so it would be good to see splits by kilometer, rather than 5km, because that would tell you exactly how the pace is fluctuating.  Physiologically, there's a big difference between going 2:52-3:00-2:52-3:00, and running 2:56 every kilometer, even though overall it's the same pace.

So far, that seems to not be the case.  A TV graphic showed a sequence of kilometer splits and the range seems to be narrow - 2:54 to 2:58, so it's a good pacing job so far.  If that continues, then the record is on, and the only determinant is the condition of the atheltes.

No splits from the leading woman, who is Florence Kiplagat.  They're saying her timing chip is not working, so the only splits coming through are for the women in the group behind her.  Will get a split as soon as possible.  She's just gone through 12km in around 39:30, which is 2:18:50 pace, so Kiplagat is going fast too.

5km

14:34, which projects 2:02:56.  The target was apparently 14:40, so they're inside it.  For now, not too damaging (though of course there may have been a 2:40 km in there, I'm not sure), but that is quick.  There's more risk of losing the record by going too fast at this stage.  Not surprisingly, the big three are in the group, along with perhaps 7 or 8 others.  That should thin out at this pace.

Start

As we wait for the first split. a prediction.  I don't think the WR will fall.  Too many things have to be absolutely perfect.  Weather, conditioning of the athlete, the pacing, the intent, and the presence and support of other runners when it counts.  If any of those factors are even 5% below optimal, the price is stiff and the record is gone.

I don't think that the three big names in this race have the necessary ability, so my call is a time just outside 2:04.  Let's call it 2:04:15.  5km split next.



Tuesday, August 06, 2013

Bolt vs Farah at 600m. The extremes meet, who wins?

Bolt vs Farah over 600m: The extremes meet in the middle (kind of, physiologically...)

For athletics fans, the prospect of Usain Bolt vs Mo Farah over 600m offers an enthralling spectacle where the most dominant athletes at the extremes of track running test themselves with one foot in the other’s domain.  I suspect it is highly unlikely to happen, but it's a great platform for some debate around performance physiology.

Predicting the winner is a fun exercise in stats, performance analysis and physiology (performance analysis - it's not an exact science, remember!).

The fascinating question for this one is where do the physiologies of these two “extreme” athletes cross?  Of course, bear in mind that there are athletes in the middle who would arguably beat both Farah and Bolt over 600m, and by a long way.  When David Rudisha broke the 800m WR in London last year, his 600m split time was 1:14.3, and that's about as fast as I suspect Farah or Bolt could run in a straight 600m.

Rudisha's 1:40.91 predicts something under 1:12 for 600m (the world record is 1:12.81, and that's from Johnny Gray, who was 1.6 seconds slower than Rudisha at his best), so he would certainly win a 600m were he in it.  In fact, so would just about the entire men's 800m Olympic final field, and a good few 400m, 400m hurdlers and 1500m runners (the 800m/1500m combo guys) too - this 600m is not about finding the best athlete, but about some fun and publicity!

Physiology at the 'extremes'

Physiologically, making the prediction invites some discussion over the origin and capacity of the energy pathways used by each, and what it means for fatigue.

It boils down to different questions for each man.  For Bolt, it’s whether he can withstand the fatigue of going three times further than his normal race distance, and how much he would need to slow down to avoid complete failure to even finish the distance?

For Farah, it’s whether his top speed is high enough to pressurize Bolt into that premature fatigue?

A quick physiological lesson will explain:  When you see athletes tying up and slowing down dramatically at the end of a sprint race, what you are witnessing is the combination of a "failure" of energy production (the supply can't meet the demand), a build up of metabolic by-products in the muscle and the central and peripheral responses to these changes.  Nobody knows the full explanation for this, and it’s likely more complex than any current theory can explain, but the result is a reduction in muscle contractility with sub-maximal muscle recruitment.

Studies have shown, for instance, that at the end of a 400m race, drop-jump performance declines by 39% and that muscle activation increases, which shows the cumulative effects of fatigue on muscle function - more recruitment needed for less force/power.  Other studies show that this happens despite pacing, and the presence of some muscle unit reserve, which implies that fatigue occurs partly in the brain, partly in the muscle.

The source of energy is crucial to both fatigue processes, because it affects the biochemical changes occurring in the muscle.  Bolt and Farah rely on different pathways for their energy.  Bolt has a highly developed pathway that produces the energy needed for muscle contraction very rapidly, but not for very long.  His energy comes primarily from what are known as oxygen independent (or anaerobic, though this word is avoided by many) pathways.  They are all about the speed of energy supply, and the consequence – a build up of metabolites, is an accepted downside because he doesn’t need more than 20 seconds of explosive power.

Farah, on the other hand, can produce energy for hours, but more slowly, using primarily oxygen dependent, or aerobic pathways.  The upside is less peripheral accumulation (though glycogen depletion is, eventually, a theoretical 'limit'), the downside is the rate of supply.  This difference accounts for the clear differences in the optimal pacing strategy between short duration and long-duration events, something I summarized in this review article for BJSM.

There is always an overlap, with some contribution from both pathways, no matter the distance, but for shorter, high intensity exercise like sprinting, the oxygen-independent pathways are more heavily relied upon (in the 200m event, for instance, the split is around 70%-30% in favor of energy production without oxygen.  By 1500m, it is reversed to 30%-70%).

So, as much as Bolt and Farah lie at the opposite ends of the performance spectrum, they are also extremes of biochemistry.  Muscle histology and function also differ – Bolt’s are more contractile, able to contract rapidly and forcefully, but they also fatigue more rapidly.

The prediction

Over the nominated distance of 600m, Farah would be forced to find a force and speed of muscle contraction and energy production that he is unfamiliar with, while Bolt will be asking his biochemistry to withstand an accumulation of metabolites and resultant fatigue that he is also unaccustomed to.

As for a prediction, the biochemical odds are slightly tilted in Farah’s favor at 600m.  A number of people have attempted to model where the perfect distance is, and using the above-mentioned energy pathway models, have estimated that the perfect distance, with equal performances, lies somewhere between 500m and 550m.

Those additional 50m, seemingly trivial, probably just give Farah the edge and represent 50m too far for Bolt’s physiology.  Farah’s famous finishing kick, as well as his recent 1500m performance, a European record of 3:28, have shown that he has extra-ordinary sustained speed for a distance runner, so the biochemical “jump” to a 600m may not be as large as the step up from 200m to 600m for Bolt.

On that performance note, Farah's 600m performance is easier to predict and is more familiar to him - it's something he'd do regularly in training, whereas Bolt would very rarely approach even sub-maximal efforts for this duration.

Performance-wise, Farah's 3:28 suggests that his 800m performance would be in the range of 1:45 to 1:46.  That would optimally be achieved with a 51-52s first lap, and a 53-54s second lap.  That in turn suggests that a very fast 400m of 49s would be possible.  Then it becomes a question of limiting the slow down, and finishing with a time around 1:14-1:15.  It's about starting fast enough to take advantage of sustainable speed and attenuated slowing down at the end.

Bolt, on the other hand, has to worry about the opposite problem - not starting too fast.  He has run 400m in under 46s almost every year since 2007, including a PB of 45.28s six years ago, and a 45.35s at the age of only 17.  So he may have the natural ability, if he judges the pace well, to edge Farah.  However, six years is a long time, and those low 45s are probably less relevant now, particularly since he has probably gained mass since 2007.  Mass hurts over longer distances, so Bolt has this to deal with as well.  If Bolt does go out in 48s, gaining an advantage of around a second over Farah, he'd need to hold on to around 27s for the final 200m, and I suspect that would be a little too much to ask.

With a month of dedicated training for the 600m distance, my money would be split.  In my opinion, it would be a coin toss - Bolt would be able to change the training enough to adapt just enough to make it incredibly close.  But, if the race were to happen straight after their specialized seasons, Farah has the edge.  I'd pick Farah by about half a second to a second.  Over 550m, maybe it comes down to the lean.  It would be a fascinating meeting of two extremes.  It would sure be fun to watch, and discuss - that happens over on Twitter and Facebook!

Ross




Sunday, July 28, 2013

Alan Oliveira runs 10.57s. Leg length or something else? Over to the IPC and IAAF

Alan Oliveira runs 10.57s: Is it leg length, or something else? Over to the IPC/IAAF

Hot on the heels of a 20.66s World Record for double-amputees in Lyon a week ago, Alan Oliveira of Brazil, the fastest double amputee in the world, today destroyed his own 100m World Record with a performance of 10.57s in the London Olympic stadium.

I wrote about his emergence as the heir to Oscar Pistorius last week, describing the implications of his incredible improvements in 2013.  He last week won the 100m, 200m and 400m titles in the IPC World Championships, and is now a staggering 0.44s faster than the next fastest in history at 100m (Pistorius).  The improvement has come within the last two months, because prior to that, Oliveira's best 100m time was 11.33s.

The leg length - in play, but a red herring

Of course, the current debate is all about his legs, and more specifically, their length.  That is a red herring.  While partly true, there are many reasons to suggest that what Oliveira has achieved in 2013 is not the result of excessively long legs, but some other factor, which has already been proven to exist by scientific research.  Unfortunately, the IPC seem intent on pursuing length as the critical one, with new rules controlling length to be announced soon.

It's unclear what this will mean for Oliveira in the short term, but the problem is that they won't solve the larger problem, and the next athlete to come along with once again push the sport into the same dilemma.

Let's look at the leg length issue in a bit more detail.

London 2012 flashback

When he defeated Pistorius in the London 2012 200m final last year, the accusation made by Pistorius was that he "couldn't compete with Alan's (long) stride length".  An easy explanation to test, because all it took was counting the strides, and it turned out that Oliveira's stride was not all that long.  In fact, Pistorius took fewer strides than Oliveira, and thus had the longer stride - 92 steps vs 98 steps, for a step length of 2.2 m vs 2.0 m for Pistorius and Oliveira, respectively (remember that a stride is two steps - I counted steps, but report strides later in the discussion).  And the final 100m showed the same pattern - Pistorius' average step length was 2.3 m, compared to 2.2 m for Oliveira.

So, stride length, at least at a superficial level, is not where the advantage came from back then, and it's not the sole explanation now either.

That said, it would be incomplete and false to suggest that Oliveira's leg length should not be the subject of some scrutiny.  In the week leading up to that 200m final, Oliveira revealed in an interview that he had recently increased his blade length by 4cm, taking him from a racing height of 1.77m to 1.81m, and he was clearly relatively taller than his rivals.

To understand what all that means, let's consider how the IPC set the maximum allowable leg length for double amputees.  First of all, it's not an easy task to do - there is no such thing as a "normal height", and when someone does not have legs, then trying to be specific about how tall they would have been is a complex exercise in dealing with ranges.  That's because we don't all share the same limb proportions.

There is an average ratio of say, arms to height, and a similarly average ratio of femur length to total leg length, but these averages don't often apply to elite athletes.  One example is Michael Phelps, the world's greatest swimmer, who stands 1.93m tall and remarkably, wears the same length pants as Hicham el Guerrouj, the world record holder in the mile, who stands only 1.75m tall!

That is, a difference of 18cm in height, with the same leg length.  Such are the variations between people.  One is a swimmer, one is a runner, and they are arguably born to excel in their specific events by virtue of completely different leg to total height ratios.  For pages and pages of similarly mind-blowing stats, I would highly recommended David Epstein's book, "The Sports Gene", which is due out this week.

But for now, let's leave it at the fact that the IPC cannot simply say "You should be X cm tall based on your arm length".

Instead, what they have done is establish a maximum allowable height for each double amputee.  The image below, which was released in the aftermath of the London 2012 controversy, shows the height limits for the key players in this debate.  It invites four thoughts:




Thought # 1 - taller is not necessarily better, and that has important implications

First, notice that Oliveira is allowed race at 185.4 cm, whereas Pistorius was able to go to 193.5 cm.  Presumably, that's a limit based on arm length, modified and improved by femur length to give a total height, which is the absolute maximum for someone who has exceptionally long legs relative to their body (like el Guerrouj).  We know that in London, Oliveira was 181cm, so he was 4cm short of the limit.  He was thus perfectly legal, as I'm sure he is now.  The issue is thus not cheating, but perhaps whether the limits are 'fair'.

To address that, it's interesting to wonder about why he would stop at 181 cm?  If you're going up from 177 cm as he did, and if longer legs mean better performances (as people somewhat simply suggest), then go to the limit of 185.4 cm. More length, more speed?

The answer to that question is that at some point, going longer becomes counter-productive.  That's because the start becomes so severely compromised (as we saw with Oliveira in London), as well as balance around the bend, that the overall performance gets slower.  Top end speed may be greater, but the net result of longer limbs is less balance and therefore slower times.  Thus, there exists a "sweet spot", an optimal length for each athlete, and that's why none of the top double amputees are competing at their maximum allowable height.  Pistorius, for instance, races at 186 cm.

Thought # 2 - athletes discover the sweet spot by testing, so everyone is "optimized"

The implication of Thought # 1 is that the elite athlete have discovered their optimal sweet spot, because if they didn't, they go maximum length to find more top end speed.  We know from the PR around Pistorius that testing on blades is extensive - he traveled to Iceland often, and representatives of these carbon fiber manufacturers visit athletes for field testing regularly.

Part of the process is discovering how far below the limit the athlete should stop.  So for instance, we should be asking how Oliveira knew to stop at 181 cm prior to London, and why Pistorius was at 186 cm in the first place when he could have gone to 193 cm?  Why not 189 cm?  They had room to play with, but decided not to use it.  The answer is that they're optimized at those 'sub-max' heights.

For Oliveira, however, that may have changed since 2012.  It's conceivable that since his breakthrough (remember that he was just 19 in London last year) he has had more time and more technological support, and thus more opportunity to work out his ideal racing height.

One source at the IPC reported to me earlier this year that Oliveira had in fact gone shorter, and thus discovered a much faster start and bend performance, driving his times down.  Others are saying he is now even longer - perhaps right up to his 185.4 cm limit.  A curve ball in this debate is that between 19 and 20, he may have grown, and so his upper limit of 184.5 cm from London may have increased, allow him more to play with.

His 100m performance improvements suggest shorter, because his start is so much better, unless he has improved his balance and co-ordination spectacularly in the last 12 months.  However, we don't know what height he has raced at.  The IPC will, unless they have been grossly negligent in getting the blades measured, and that is surely inconceivable given the obvious focus on them.  They'll have to consider this information as they decide what to do next.  Which leads me on to point 3...

Thought # 3 - the IPC have to change the rule, but how effective will it be, and what do they base the change on?

It's clear that if the current progression continues, the IPC and the IAAF will have to reassess the situation of double-amputees racing in the able-bodied events.  Oliveira won the 400m title at the World Champs this weekend, but with a less than stellar time.  He said after that he doesn't train for the longer distance.  With an Olympic Games coming up in his own country, and with 3 years of preparation, maturity and strength to gain, it's almost inconceivable that he won't at least attempt to run in both Olympic and Paralympic competitions, emulating Pistorius.  Perhaps he will focus on the 200m - another half a second improvement on his 20.66s WR puts him into a final there, with possibilities of a medal should three years produce similar improvements to 2013.  Given that he is only 20, and clearly still in a period of rapid improvement, such an improvement is well within the realms of possibility.

If he does jump up to the 400m, his chances are even better - the time lost at the start can be recovered over the final 350m, and his top-end speed, which must surely be comparable to Usain Bolt's, as well as remarkable sustained speed in the second half, should see him go considerably faster still.

So, what are the IPC and IAAF to do?  Refer again to the table above, and remember that those maximum height allowances are based on data collected from hundreds if not thousands of people to establish a range of human "norms".  If the IAAF and IPC decide to change them to make Oliveira race at a shorter height, they would have to justify it by saying something along the lines of "We are now adopting mean or average height rather than allowing for extreme individuals within the normal population".  That is, they would have to pretend that extremes like Phelps or el Guerrouj don't exist, and I can't see how that is legally or scientifically defendable.  You have to allow for cases at the extreme end of "normal", which is why the answer to that apparently simple question "What is a normal height?" is so very complex.

Alternatively, they could modify the guidelines slightly, perhaps to 1SD above means, and reduce Alan Oliveira's maximum allowable height subtly.  If it meant he was forced to drop to say, 181cm, he'd be at the same height he was at in London, and that means more of the same debate and performances.

The point is this:  Because none of the athletes are at the maximum allowable height (see Thought #2), any change in the policy will have to be drastic, or it won't affect them anyway.  And drastic changes mean re-writing the understanding of human anthropometry, possibly discriminating against individuals who are normal but 'extreme', and may thus be impossible to implement.  All in all, very sticky for the IPC.

Thought 4: Leg length possibilities for Oliveira

And then finally, as I return to where I began, this discussion of length may be something of a red herring.  Again, there is no doubt that as the legs get longer relative to total height, the person is more likely to be a successful runner.

However, Oliveira has achieved almost a second of improvement in the 100m within one year.  His 200m performance trajectory is similar.  That invites three possibilities:

  1. He is still racing on the same length blades as London (height 181cm).  In this case, his improvement is solely due to training, co-ordination and normal development.  One can still say he has an advantage, but his improvement is distinct from it.

  2. He has changed up, and gone to longer legs, then I find it hard to believe that 3 to 4cm (he only has this to play with, it's not as though he can race at 195cm - see table above) can contribute to that kind of performance.  This is particularly true given that any increased length must surely compromise the start and bend, and so the effect is even larger.  Simply put, it cannot be solely due to running "taller" in 2013

  3. He has changed down, and found a better "sweetspot" that gives him a better start and bend performance, faster overall, with some accepted reduction in top speed.  If this is the case, and he's running at say 179cm, then it's even more of a problem for the IPC and IAAF because whatever they plan to change in their guidelines would need to be even more drastic.
What if stride length is not the factor at all?

But what if it is not in the length at all?  What if that simple exercise of counting his strides, and comparing them to Oscar Pistorius' in London 2012 actually hints at the solution?

Remember, that night, Pistorius took 49 steps on the bend and 43 steps in the home straight.  That is a step length of 2.0 and 2.3 m respectively.  Oliveira, on the other hand, had average step lengths of 1.92 m on the bend and 2.2 m on the straight.  In a race of absolute stride lengths, Oliveira is second-best.

The key, however, is the stride length relative to body height - someone who has excessively and disproportionately long legs will have a longer stride relative to their height, so you can partially test this 'accusation' by comparing stride length to total length.

So, running that logic for 2012, if Pistorius, at 186 cm, takes 230 cm steps, his step length to height ratio is 1.24.  Oliveira, at 181 cm with 220 cm steps, is at 1.22, and so in fact, Pistorius' steps are actually longer, not only in absolute terms, but also relative to his height.  This is the primary reason that I wasn't convinced that Oliveira's advantage was stride length back in 2012, and I'm not convinced now (though I will allow for the possibility that he has since increased his length - see Thought # 4).

The answer is more likely stride speed, not length. And that closes the loop

The ratio is however significant, because it says that Oliveira's advantage, which is now even greater than it was in London 2012, comes not from stride length, but the other important factor - stride speed.  It is the turnover of his limbs that separates Oliveira from the rest of the world, and which has made him a realistic medal chance in able-bodied competitions.

And why is that important?  Well, it closes the loop, bringing us full circle, because the scientific research on Oscar Pistorius showed that the advantage of double-amputee athletes, as a result of super-lightweight carbon fiber blades, is that his limb repositioning speed was "off the biological charts".  Those words were written by Prof Peter Weyand, who tested Pistorius and suggested a 10-12 seconds advantage because of limb reposition times he had never seen before, even in 100m Olympic champions.

Simply, the double-amputee was able to move his limbs so fast that he could then afford to spend more time on the ground, and generate significantly lower forces than able-bodied runners who were going the same speed as him.  The "athletic limit" to sprinting, according to Weyand, a world leader in sprint mechanics, is the ability to apply huge force to the ground.  Pistorius was able to run world class speeds without that limit existing, because his ultra-lightweight limbs allowed him be break another limit - the speed with which the legs could be moved.

Alan Oliveira has taken that to a new level.  When a man is running a 200m race and his strides are about 10% shorter than his rival's, then the only way to run faster than the rival is to have stride speeds that are 10% or more faster.  That's the Oliveira advantage - extra-ordinary speed of leg movement.  He is able to capitalize on the technology more effectively than any runner before him, and may also be able to generate force more rapidly than his predecessors.  The result is less time on the ground, less time in the air to reposition the limbs, and 20.66s and 10.57s performances.

Oliveria - validating the theory, vindicating the research, with no end in sight

Oliveira is, simply put, the validation of scientific theory, and he vindicates the predictions made about what would happen when the pool of athletes with access to carbon fiber blades expanded to include superior athletes.  This was inevitable - it's a rapidly growing sports category, and this is a great thing.  If only they'd kept them separate based on objective evidence, rather than the emotion of the Pistorius case.

Oliveira will one day be beaten by the next generation of double amputee, who will be even faster, and will then re-ignite the same debate.  The problem for the IPC and IAAF now is that they will have to reassess their guidelines in order to slow the runner down.  In other words, Oliveira is too fast, so we have to rewrite the rules.

Effectively, what they would be doing is setting a bar, at say 20.50 s for a 200m and 45 s for a 400m, and saying 'We welcome your participation, but just don't be too fast, or we'll have to change our rules to make you slower'.  It is analogous to putting weights on the bicycles of the top men of the Tour de France, to make the race more competitive, or make Djokovic and Murray play with wooden rackets to slow their dominance of tennis.

Well, the end is not in sight, because just as Pistorius was not going to be the pinnacle of athleticism on prosthetics, why should Oliveira be?  This is progress.  It's human progress.  A normal progression of ability as better athletes emerge.  The IPC and IAAF are looking at the technology, when they should be looking at how the heck they managed to duff the case against carbon fiber blades in the first place.

Final word - a lot of the above discussion revolves around the very basic analysis of the London 2012 200m final, where I counted the strides for Pistorius and Oliveira.  What should happen is a similar discussion, in even more detail, now that Oliveira is rewriting the record books.

However, that won't happen, because the powers that be don't seem to recognize the importance of gathering the data to inform this kind of discussion.  I can appreciate that they have bigger issues, and may not have the resources to do it themselves.  Certainly, they are custodians over more than just one category and three of its events.

However, in the build up to the Lyon IPC World Championships, I tried to approach the IPC for permission to analyse Oliveira's 100m and 200m races.  I wanted split times at 10m intervals, so that we could discover just how much time he lost at the start, when he hit top speed and how that top speed compared to Usain Bolt's (I suspect it is the same, or faster).  However, the IPC were not as enthusiastic, and so the study concept was never approved.

What a pity, because now we have to guess - we don't know his leg length, or the limit, or just how he put those world records together.  In time, maybe this debate will force those facts into the open, and that will be a good thing.  But until the evidence emerges, we talk about average stride lengths and stride speeds, which suggest that it's not solely about longer legs (as the public and even some rivals are still proclaiming), but about stride speed.

The evidence is out there, waiting to be found.  For Pistorius, the evidence was found - it showed clearly what was happening.  Why is it paid no attention?

In time, perhaps it will be.  Today, in 10.57s, Oliveira guaranteed that it would be.  There's much still to learn.

Ross

Friday, July 26, 2013

On performance analysis: Common sense, guided

Performance analysis in sport: The guidance of common sense

With the Tour de France now disappearing in the rear-view mirror, I've been weighing up a post on the value of performance analysis as a predictive tool in sport, particularly given the criticism of our (Doc at the Veloclinic, Ammatti, Fred Grappe and Antoine Vayer) recent analysis of the Tour de France.

Throughout the process, I encouraged the use of insight and circumspection when looking at performance metrics, but however strongly the message was emphasized that performance does not constitute proof of doping, there is always a convenient and 'lazy' way to dismiss it as 'pseudoscience' (which is the new "never failed a test" defence, incidentally).  That particular stick (pseudoscience) has been wielded in the context of Pistorius, Armstrong, hydration, barefoot running, running technique and fatigue, but not previously with the extremism seen during the Tour.

So here are some thoughts on the method, and an attempt to create some context around the value of trying to understand the world with imperfect methods (which we all admit they are).

Acceptable uncertainty - performance analysis is never exact

In my work with the SA Sevens Rugby team, we analyse performances.  We analyse opposition patterns, we study their options and tendencies in various phases of the game.  The purpose is to better understand, and thus predict, what they are likely to do.  We can tell our players to expect Samoa to play a certain pattern, whereas Fiji will do the opposite.  The players run onto the field knowing with a reasonable degree of certainty where a lineout throw will go, how the opponent will defend rucks, what they'll attempt on kick-offs and how they are likely to run at us from broken play.

This is the same concept applied to sports the world over.  In the NFL, it exists at perhaps its highest level, where expert analysts break down seemingly random patterns and discover 'tells' and methods to pre-empt opposition plays.

However, everyone involved recognizes that it is not formulaic.  There is uncertainty, and this is accepted.  Performance analysis, regardless of the sport, is always an exercise in probability because it happens in uncontrollable conditions, and so it adds value by adding insight rather than by conclusively and accurately predicting what will happen.  I can't give you the error bars on this kind of analysis, because sport is fluid and contextual, and so even the 'safest' bets are vulnerable to unique and specific situations.  The smaller the data set, the greater the error, but it's hard to assign a value to it.

The result is that a player cannot run onto the field with a text-book in their mind and then fail to use common sense, as well as all their other senses, to assess a given situation.  Playing off memory, stats and data is a disaster, when you have eyes, ears and insight.  Just because the pre-match analysis said that the opponent would do X does not mean options Y and Z are off the table, and so a 'smart' player is needed to discern the actual event from the performance analysis predictions.  On that note, we've had players who can't seem to grasp this, and who take to the field with only one option in their minds.  They prove to be inflexible and are probably better off with less information.  For most, however, the guidance is beneficial, if interpreted sensibly.

If I tell Novak Djokovic that Andy Murray is likely to serve down the T on points where he is leading but out wide when behind on the scoreboard (for instance, this may happen on 75% of points, with an error), Djokovic would be foolish to leap wide during the ball-toss, but he'd also be foolish to discard the information because there's "uncertainty".  Inch, don't leap.

In cycling, there seems to have been far tooo much "leaping", in the sense that people seem to have either blindly embraced or discarded the concept of performance analysis, whether it be for the metric time up a mountain, estimated power output, or the physiological implications of that performance, without recognizing the necessary nuance.

Keep the other senses

So performance analysis in rugby, football, tennis, American football and basketball may be quite different from performance analysis is cycling and running in many respects, but it is similar in one important aspect - it does not replace common sense or give permission to disengage every other sense in order to rigidly accept a black and white version of the world of sport, which is clearly nuanced and everyone recognizes this.  For this reason, it never constitutes proof.

Why people would want to accept such extremism is beyond me.  That inflexibility fosters blindness and prevents insight.  In effect, people who dismiss performance metrics and their implications as "worthless" because we are estimating power output are analogous to a blind man, offered 40% vision, but who refuses it because he only wants 100% sight.  It's 20/20 or nothing, and I believe that's a flawed and narrow understanding of the world.  It would be the same as a head coach saying to his analysts "If you can't guarantee with 100% certainty what my opposition are going to do, I don't want to know it at all".

Before I'm seen to be proclaiming that say, 40% is "good enough", I will say once again that we all recognize that it's not.   We want 90%, 100%.  That's why the process began with a call for the data, biological and performance.  That's because the "blurred" image offered by 40% vision, similar to the "performance pixellation" I wrote about after many stages in the 2013 Tour de France, may well lead a person into many blind alleys and unseen obstacles.

However, what seems overlooked is that people still have other senses - they have small, hearing and touch.  And they should also have some common sense.  So 40% vision added to other senses makes anyone better off than they were in total blindness.  Unless, of course, said blind man decides that with his new-found 40%, he is going to ignore every other sense.  This would be equally foolish in the opposite direction.

So if we can gain any insight at all, and combine it with our other senses, then just like our SA 7s rugby players, or the NFL footballers or a basketball player, we can run onto the field or court with more confidence, provided we retain the ability to interpret every situation as it develops for what it is.

As applied to the 2013 Tour de France

Therefore, when Chris Froome rides away from a field on the first week of the Tour at a power output that is higher than benchmarked, and produces a time that puts him in the company of known dopers, we should ask questions of that performance.  But we cannot conclusively use it to prove that he is doping.  That would be extremism, and it would be wrong.  It's for this reason that I have written, and still believe, that Vayer is too far to the extreme when he declares performances 'mutant'.  They are not - they're still within the realms of physiological plausibility, though on the high side.  That's what Fred Grappe concluded when provided access to Froome's data, and it is the conservative and correct approach.

Similarly, Rodriguez or Quintana should be regarded with some 'wonder' for getting progressively better, and eventually exceeding historical benchmarks during the race.  Quintana, incidentally, produced the best performance of the entire Tour on its very final climb of Semnoz, benchmarked against historical norms using the pVAM method (pVAM, while I'm discussing it, is just that - a benchmarking method that for the first time, makes Semnoz comparable to Alp d'Huez even though it had never been done in the Tour.  And that's progress - for all the criticism of the pVAM method, it opens that possibility.  Now it needs evolution)

A process, and evolution with uncertainty

Without the analysis of pVAM and the estimates of power output, plotting those power outputs against duration, and historical reference points, these performances have no context.  Therefore, performance analysis asks questions, it does not answer them.  In time, those answers may emerge, and performance analysis can help us to evaluate those answers as realistic or false.  But with an eyes tightly shut approach, we are guessing.  For instance, is it normal to show higher power outputs in week 3?  We don't know.  Had we gathered data for 20 years, we'd have a pretty good idea.

The point is, this is all a process.  It's never going to be perfect, but if we halt evolution based on imperfect then we'll never move forward.  If Henry Ford and others had decided not to proceed with mass produced cars because he had in mind the perfect luxury vehicle, then we'd still be sitting on horse-drawn carriages.  I think that Doc, Ammatti and even Vayer (despite some differences in the interpretation) are doing cycling a favour by calling for transparency and starting a discussion.  I honestly believe that performance analysis is making progress in cycling as a result of their efforts.  Again, it's not perfect.  There is uncertainty. But then, progress dies of boredom when there is certainty.

It doesn't deserve outright dismissal, and it doesn't warrant embracing as conclusive proof of anything (nor does it ever ask to be seen this way).  So I'd thank all those for participating in the discussion.  I hope it advances insight and enjoyment of the sport (it certainly does for me).  I applaud people for wanting accuracy, I think that is always good.  And if I have ever drawn a conclusion that goes beyond what the error of the estimates does not allow, I'd expect to be called out on it.  Run me out of town i I say that a performance is proof of doping without recognizing its context or explaining that kind of extreme statement.

But equally, I'd hope that people read the articles (yeah, I know, they're long) and then consider my interpretation of the numbers, and the explanation, the nuances, and then avoid the extremism reaction.  We all have other senses, after all, so we can accept uncertainty and navigate with only partial vision, provided we engage those senses, most of all common sense.

Two final parting thoughts

That said, two final thoughts on the 2013 Tour, from a performance analysis perspective:

1.  These are the SRM data for five Tour performances, compared to our estimates using two methods.  One is the method of Ferrari, using pVAM, the other is the CPL method, which pretty closely approximates Vayer's method.  Once again, they're from Ammatti Pyoraily's vast bank of performances:


Perfect? No.  But not nearly as unusable as some have suggested.  You can decide for yourself whether those estimates are worthless or not.  I'd point out that the estimations are just as likely to underestimate power than overestimate it (3 vs 2 for CPL), so sometimes estimation gives benefits to the cyclist.  Collectively, if we wish to avoid performance pixellation, the average error for these five performances is 0.6%.

The timing of climbs was criticized because it's based on TV observations.  An error of a few seconds, far smaller than any of the other errors, so it's a bizarre criticism that emerged in the Tour.  If we were hand-timing Usain Bolt in a 10-sec sprint, it'd be different, but not over 30 minutes or more.  Wind?  Of course.  When you're going in a straight line with tailwind for 90% of the race route, like Boston Marathon runners experienced in 2010, wind blows the whole thing out the water.  I dare say it's a lot less significant, based on SRM data, in the variable Tour geography.

Is it acceptable to be within 1-3% per climb?  That depends what one wishes to conclude.  If the pursuit is proof of doping, then of course it isn't, but even exact SRM data wouldn't "prove" anything anyway.  We can always do better - you'll notice that Ferrari's method tends to overestimate power, and that's because for lighter riders and faster speeds, the formula he developed doesn't account fully for drag.  That's why Doc at the Veloclinic has been trying to develop a better method for performance prediction, taking into account the components - all part of the process of getting better, and that's the evolution that will make 2014 better than 2013.

But I think on the whole (and again, the above table shows only five 2013 comparisons, but we've pooled this with other data from Sorensen and the 2010 Tour de France where Horner provided his SRM data) the error is consistently in that 1 - 3% range, and I'd argue that the method is not as poor as some have suggested.

More to the point, the exact data wouldn't allow conclusive proof of doping or non-doping anyway, so given that the interpretation is subject to nuance and context, the error in the estimate can be accepted at this level.  It's an acceptable level of uncertainty.  That's the performance uncertainty aspect I wrote of earlier - we may not have 100% vision, but we have senses.  We just need to use them fully as we add to them, uncertainty and all.

2.  This whole performance analysis concept became heated and controversial because it seems that many in the English speaking world had a vested interest in the success of specific riders.  Much like the most aggressive defence during the Lance Armstrong era was coming from the USA, some of the most vocal defense of Froome was, understandably, coming from the UK.  And even British media.  There is nothing inherently wrong with this.

By the end of the Tour, Quintana and Rodriguez were at the same level as Froome on Ax-3-Domaines, and Quintana even surpassed it on Semnoz to produce the best climb of the race, statistically speaking.  Even accepting the constraints of "performance pixellation", the trend was quite clear.

And in some parallel universe, hypothetically speaking, I wonder how the numbers and estimates would have been perceived if Quintana and Rodriguez started the Tour in that condition?  What if Contador had joined them at speeds as fast as Armstrong and Ullrich a decade before?  I dare say that had it been Quintana and Rodriguez accelerating clear on Ventoux and Ax-3-Domaines, the whole process of our performance analysis would have found a different story from the very first mountain.  A new script, certainly one in which we'd be doing less defensive explanation than we've done.  Would those performances have attracted a similar skepticism from the UK press as Froome did from the French media (by all accounts)?  Certainly, and that's the key - the performance warrants questions, not accusation, and measuring it, imperfection and all, can only be helpful.

Ultimately, though, the final word on the 2013 Tour is that we shouldn't be accusing, just wondering.  And given cycling's history, and the fact that those entrusted with running the sport have shown themselves to be unable to clean it up, we cannot simply believe (blindly) in miracles this time around.  So we wonder, reasonably, and use some kind of performance metric to gain some insight.  Proof, no.  But equally, not worthless.

On that note, crank punk nails the problem facing cycling's appeals for trust.  There've been scandals in the past, and as sure as anything, there will be doping scandals in the future.  Paul Kimmage also recently gave this interview - he's over on the cynical extreme, but his thoughts are eloquent and with some caution, well worth listening to. Jump to the 10:00 mark.

On that note, thanks for reading the Tour coverage, let's do it again in a year.  Next up, the IAAF World Championships in Moscow.

Ross



Monday, July 22, 2013

Oliveira 20.66s: A double amputee will soon medal in able-bodied Olympics

Double amputee sprinters version 2.0: Alan Oliveria runs 20.66s 200m

The next generation of double-amputee sprinters have arrived, sooner than expected. Alan Oliveira of Brazil today won the 200m world title in 20.66s, improving the previous world record for double-amputees by 0.64s.

Oliveira, who shot to prominence after defeating Pistorius amidst blade controversies at the London's Paralympics, added the 200m WR to his 100m WR set a month ago (10.77s, 0.16s faster than previous).

So, we now see the successor to Pistorius, running 0.14s and 0.64s faster than Pistorius over 100m and 200m, respectively.  How much faster will he be over 400m?  The answer is "substantially".  Even if he does not continue increasing that advantage over the previous benchmark as distance increases, he will run ± 44.3 s.  Chances are, it grows even larger.  If you saw the race today, and the final 100m, you'll appreciate why.

So, a prediction, and you heard it here first (actually, if you've been following this debate about carbon fibre blades, you'll have heard it here years ago):

If he desires to run against able-bodied athletes, Alan Oliveira will win a medal in the 400m at the 2016 Olympic Games.  He is still only 20, with much strength to gain, but his recent improvements are staggering - 0.56s in the 100m and 0.80s in the 200m since the London Paralympics.  That suggests much more to come, and it suggests a medal in the able-bodied Olympics in 2016.  Of course, he may not wish to, which would be interesting.  If it is not him, it may be the next athlete, but it will happen.

This is not a criticism of Alan Oliveira, who deserves credit for his performances in the Paralympic events.  He will become the best amputee sprinter in history, if he is not already.  This is however an issue of the cross-over of amputee and able-bodied competitions, and the implications of this kind of progress for that decision.

The decision to allow Pistorius his wish to compete in able-bodied events was always going to have predictable repercussions in the future.  These were unfortunately obscured by marketing, emotion and the incomplete (dishonest?) presentation of science.  Allied to this was the media's almost total inability and lack of will to challenge the PR campaigns and to ask the difficult questions while they fell over themselves to tell the heart-warming, popular story.  (I hope that this section of the media will tell the same story for Oliveira or his successor when they run sub-43 seconds for 400m.)

The repercussions come more clearly into view today, because the evolution of a young sport means that better athletes will emerge, and times will continue to plummet. No doubt the authorities will scramble to look at the technology, but they'd be wasting their time - this is not an issue of technology changing - it's too soon for that to have happened significantly, and I'd hazard that Oliveira has had less R&D support than Pistorius so is likely still on technologically inferior equipment - he's just better at using them.  It's the athletes improving, because that's how a young sport evolves.

By allowing the cross-over to happen, the authorities and media, who were so starstruck by Pistorius that they couldn't see this, made the incorrect starting assumption that Pistorius belonged, physiologically, at the highest level of able-bodied sprinting.  The science was however clear - this assumption was wrong and Pistorius was getting between 5 and 10 seconds advantage in a 400m race, but the decision was made regardless.

It was thus inevitable that Pistorius' performance would soon be beaten, even with the same technology.  Oliveira today revealed just how much further we may still have to go - a 0.64s improvement in a single 200m race is astonishing, and it puts into context the true capacity of Pistorius and his performances.  And of course, on top of this, we know that technology progresses.  The dual combination of technology and a better athlete pool creates a situation almost impossible for authorities to control - they can be grateful we are only talking about one athlete at a time.  For now - in time, depth will be added to the dilemma.

So, do we now see a reassessment of the decision because an athlete may suddenly be "too fast"?  How can a decision be reversed based on the weak reason of "technology" when that technology was not even understood to begin with?  How far backwards can the IAAF bend on this?  And what happens when the next generation emerges, even faster than Oliveira?  Do we repeat the back-tracking again, in which case the entry requirement for participation in able-bodied events becomes that "you're just not quite fast enough?"  A theoretically farcical situation, but not all that far off, judging from 20.66s of sprinting today.

The issues around the performance advantages of carbon fiber blades was always going to be confirmed by the clock.  It's ticking a little more quickly than many might have thought.  Is anyone listening?

Ross

Wednesday, July 17, 2013

Tour de France 2013: Alp d'Huez preview

Preview of Alp d'Huez - history, performances and predictions

Alp d'Huez is the Tour de France most iconic climb, and its frequency and prestige make it the most informative barometer for the sport.  Unfortunately, since 2008 when the biological passport was introduced, it's only featured twice, so the more recent data is thin.  2013 adds two more ascents to the history of Alp d'Huez in the Tour, and in time, this decade will make an interesting comparison to the 1990s and 2000s.

Looking back, because it has been a regular feature in the Tour, performance history is so deep that even bad years (too hot, too cold, too windy, too tactical) can be dealt with and the emerging picture of cycling's "performance barometer" is clearest when looking at this mountain.

Below is some historical context to the climb, and my thoughts ahead of its double-inclusion in tomorrow's 2013 Tour de France.

The rankings

The figure below shows the top 140 performances, colour coded by eras.  Those eras are 1991-1997 (pre-Festina, in red), 1999-2003 (post-Festina/early Armstrong, in orange), 2004 (the ITT, purple), 2006 (pre-biological passport/post-Armstrong, yellow), and 2008-2011 (two ascents in the biological passport era, green)  (data courtesy ammattipyoraily's comprehensive list)



That's a very busy image, so to streamline it a little, I've cut out all but the Top 3 times per year in the figure below




Generally speaking, red shades represent the 1990s, and it's clear that they're heavily weighted to the bottom (higher ranking) and right (faster times) of the graph.

The fastest performances on the mountain belong, not surprisingly, to Marco Pantani, who has broken 37:00 twice.  He also occupies third place, and only then do the performances of Armstrong, Ullrich, Indurain, Zulle, Riis and Virenque feature.  The implication of this is that Pantani was finishing 200km stages with faster ascents than the ITT of 2004, which is quite astonishing (the 2004 ITT was hot, but not exceptionally.  I can't vouch for the conditions during those Pantani ascents).

Also indicated on the graphs above are the pVAM and dpVAM predicted times.  Recall that pVAM is the predicted performance based on the collection of top-3 finishers in the GC in Grand Tours from 2008-2013 (post-biological passport).  The dpVAM is the same concept, but based on the climbing times from 2002 to 2007 (pre-passport).  (Based on what you see above, it would be interesting to have a similar prediction based on the times in the 1990s)

pVAM for Alp d'Huez is 1606 m/hour, giving a predicted time of 41:48.  That actually lies to the left of the data set in the above graphs, as it is slower than the 140th best time in history, which provides some perspective on what the doping eras of the 1990s and 2000s provided.  The dpVAM is indicated as 40:22 (VAM = 1664 m/hour), which would be good for 64th on the all-time list.

The figures below show the relationship between power output and performance on the climb, once again indicating where the historical prediction lies, as well as the performance of noteworthy former champions of the Tour.





Alp d'Huez's depth & history provide a dose of perspective

The mountain-top finishes of the 2013 Tour have been dominated by Chris Froome.  When using the pVAM and dpVAM method of comparison, Chris Froome is the only cyclist who has finished faster than the predictions on both climbs.  Remember that this prediction is nothing more than a standardized, objective method of evaluating climb performance using historical benchmarks - the implications of being faster or slower than the prediction can be discussed separately.  All that matters for now is a relative comparison between different riders of the 2013 race against this benchmark.

On Ax-3-Domaines, Richie Porte joined Froome under the historical "undoped" benchmark, whereas Mont Ventoux saw ten men go faster than pVAM (that suggests favorable conditions on the day).  Nobody other than Froome has been faster than the dpVAM prediction in either finishing climb this year, and he did it on both climbs.

So, this introduces a few possible scenarios for this year:


  1. If the entire peloton reproduces what we have seen in the previous two stages (that is, ranging between pVAM and 3% faster than pVAM), then we will see a performance in the range of 40:40 to 42:00. That means that the fastest time this year will not break into the top 70 of all-time.
  2. If anyone is able to produce a performance like Froome's on Ax-3-Domaines or Mont Ventoux, then expect a time slightly faster than the dpVAM, which is 40:22. They may just crack 40 minutes, which would sneak them into the top 50.
  3. In order to get into the top 20 of all-time, a performance faster than 39:15 would be required. That would be 2.8% faster than the dpVAM, the prediction made based on times from the known doped era. So far, Chris Froome has been 1.9% and 0.35% faster than dpVAM on Ax-3-Domaines and Mont Ventoux, respectively.

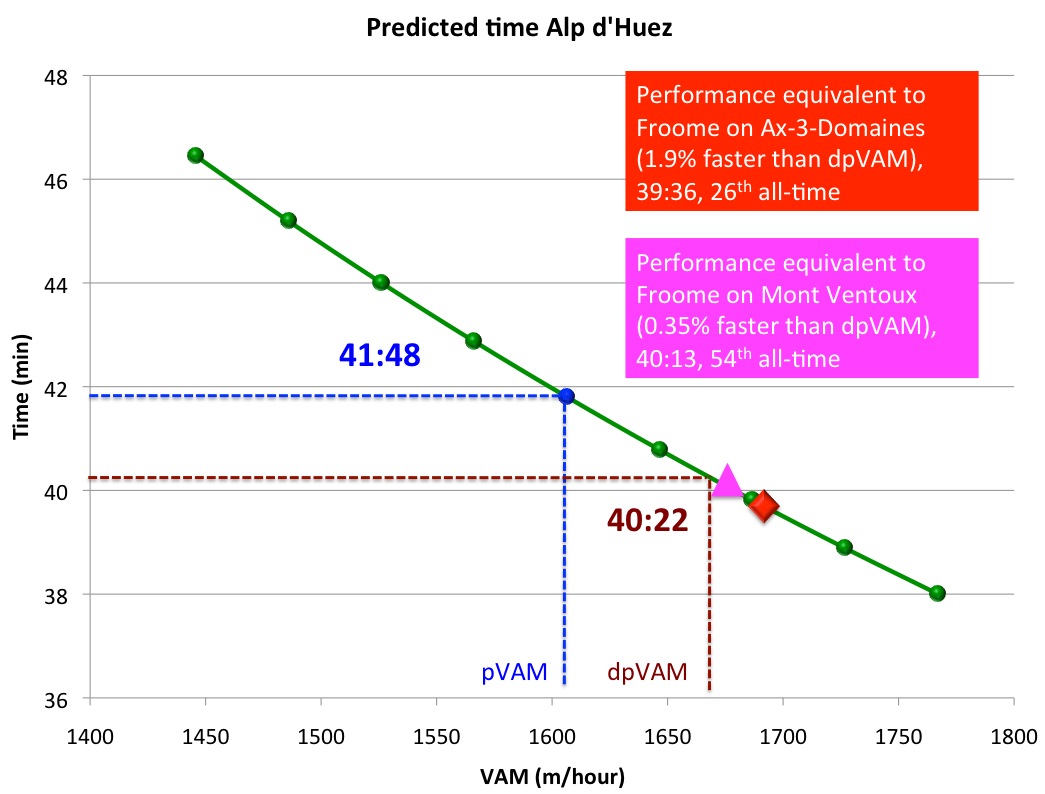

    The figure below shows where Froome's performances on those two climbs would be expected to feature were he to produce them again on Alp d'Huez. The red diamond corresponds to Froome's Ax-3-Domaines performance - it is 1.9% faster than the prediction from the doped era.  The pink triangle is a performance corresponding to Froome on Mont Ventoux - 0.35% faster than dpVAM. Those same performances on Alp d'Huez would be good enough for 26th and 54th on the all-time list.





Clearly, Froome's performances on those climbs, impressive as they were, are placed into context when held up against the Tour's deepest and most extensive benchmark.  That's been part of the difficulty to date - I called it "performance pixellation", when isolated performances are viewed, well, in isolation.  The deeper the data goes, the better the insight gained, and that applies to the mountain as well.  That's why this entire exercise, and that of the Doc at the veloclinic, are about the process, not proof.   This is a point I've tried to emphasize many times, but the message sometimes doesn't get through.  Hopefully Alp d'Huez adds some more perspective to help this argument along.

That said, the tactical situation of the race may confound the Alp d'Huez ascent this year.  Much like the situation on Mont Ventoux, Chris Froome can afford to be relatively conservative, and pick a moment later in the climb to attack, if at all.  Last Sunday on Ventoux, he attacked with about 7km to go, producing a furious acceleration off what was a relatively cautious first half of the climb.  The same on Alp d'Huez would skew the eventual time - David Brailsford alluded in an interview to the fact that their data suggest Froome could have been even faster, something that was obvious just looking at the pacing strategy on the climb (the other riders provide the barometer for the pacing).  Given that he does not need the time, Froome may do the same tomorrow, so we will wait to see what the performance means in the grander, historical context.

Also of interest will be the double ascent, to see just how much more slowly they ride the climb the first time around.  I'd be surprised if the main peloton breaks 46 minutes the first time (that projects a power output of about 5.1 W/kg using Ferrari's method).  An early break, which is inevitable, could well gain 3 to 4 mins within the 21 hairpins of the climb.

And finally, the weather forecast, in keeping with the individuals time-trial I'm watching as I write this, is cold and wet.  That introduces an interesting variable, because different riders tolerate changes in temperature, and also colder temperatures, far worse than others, so the ascent of Alp d'Huez may throw up a few surprises.

The analysis and thoughts to come, particularly on Facebook and Twitter, so do follow me and then join me tomorrow for what should be a tremendous day on cycling's greatest stage.

Ross
